Electrical Symbols Quiz

Features Electrical Symbols Quiz

Electrical Symbols Quiz is a quiz game made up of all electrical symbols.

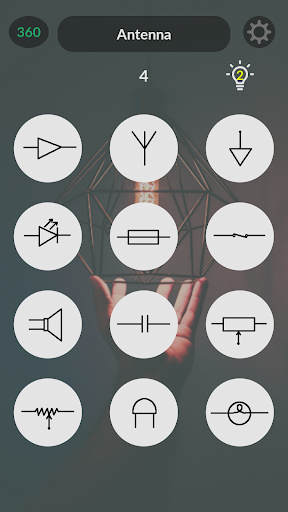

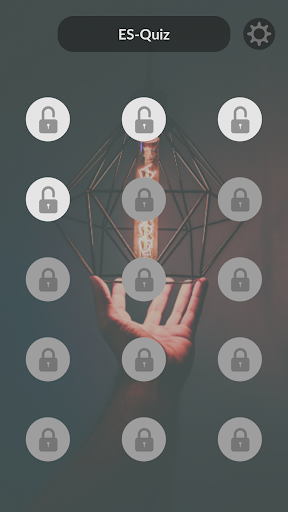

Each level has 12 electrical symbols that you will have to identify.
You need a minimum of 60 points to cross to the next level.
Getting 1 correct answer gives you a score of 5 points, you lose 3 points if you give a wrong answer, seeking help will cost you 2 points.
You can watch a video ad to get more points.
You can play with symbols such as:-Fuse-Wattmeter-Inductor-Ammeter-Transformer-Step down transformer-Step up transformer-Electric bell-Battery-Three pole isolator-Connected wires-Not connected wires-SPST toggle switch-SPDT toggle switch-Earth ground-Chassis ground-Digital/Common ground-Bus-Resistor(IEEE)-Resistor(IEC)-Potentiometer(IEEE)-Potentiometer(IEC)-Thermistor-Variable resistor(IEC)-Variable resistor(IEEE)-Trimmer resistor-Light bulb-Non polarized capacitor-Polarized capacitor-Variable capacitor-Variable inductor-Iron core inductor-AC Voltage source-DC Voltage source-Current source-Generator-Battery cell-Control voltage source-Control current source-Ohmmeter-Zener diode-Schottky diode-PN junction diode-Photo diode-Varicap diode(Varactor)-Tunnel diode-Light Emitting diode(LED)-Electric motor-NPN Bipolar transistor-PNP Bipolar transistor-Buzzer-Loud speaker-Microphone-Analog to digital converter-Digital to analog converter-Operational amplifier-Schmitt trigger-Crystal oscillator-Dipole antenna-NOT gate (Inverter)-Antenna-AND gate-OR gate-NAND gate-NOR gate-XOR gate-D Flip-Flop-Multiplexer 2 to 1-Multiplexer 4 to 1-Demultiplexer 1 to 2-Demultiplexer 1 to 4-Open switch-Closed switch-Half inductor-chassis-Pulse-Saw tooth-Step function-Solder bridge-Jumper-Sinusoidal generator-Pulse generator-Triangular wave generator-Basic amplifier-Center tapped transformer-Milli ammeter-Milli voltmeter-Micro ammeter-Light dependent resistor(IEC)-Light dependent resistor(IEEE)-Voltmeter-AC contactor coil-DC contactor coil-AC solenoid coil-DC solenoid coil-Iron core center tapped inductor-Ferrite core center tapped inductor-Attenuator-Current transformer-Buffer-Constant current source-Constant current diode-Circuit breaker-Center tapped inductor-DIP switch-Laser diode-Electrical interlock-Bridge rectifier-4-pole isolator-Feed through capacitor-Loop antenna-Flashing led-Normally open limit switch-Normally close limit switch-DPDT switch-DPST switch-Normally close contact-Normally open push button-Fused isolator-Contactor poles-Three phase supply-Thermal relay-Squirrel cage induction motor-Wound rotor induction motor-Rectifier-Normally open timer contact-Normally close timer contact-Emergency stop push button-Transducer-Tri state buffer-Power outlet-XNOR gate-Thyristor-Three phase induction motor-Emergency switch-Memristor-Normally open thermal relay contact-Normally close thermal relay contact-N-channel FET-P-channel FET-Cathod Ray Oscilloscope (CRO)-DC motor-Photo transistor-Photo darlington-Single phase motor-Opto-isolator(optocoupler)-Relay coil-Relay switch-Solenoid valve-Thermocouple-AC to DC converter-DC to AC converter-DC to DC converter-Cavity resonator-Ceramic resonator-Coaxial cable-Crystal microphone-Current limiting diode-Darlington transistor-Delay line-Globe valve-Butterfly valve-Gate valve-Ball valve-Star winding configuration-Delta winding configuration-Lab winding configuration-Wave winding configuration-Female contact-Male contact-Female plug-Male plug-Galvanometer-Synchronoscope-Varmeter-Tachometer-Normally open flow switch-Normally close flow switch-Normally open level sensor-Normally close level sensor-Enhancement MOSFET-Depletion MOSFET-Solar cell-Thermal switch-Solar panel-Triac-Gunn diode-Single phase motor-Thermocouple-Touch sensor-Noise source-Power factor meter-Energy meter-Diaphram valve
